Rosemount Micro Motion 5700 Field-Mount Transmitter

Name: Rosemount Micro Motion 5700 FieldMount Transmitter
Brand: Rosemount
Price: 2500 USD

Wholesale Rosemount Micro Motion 5700 Field-Mount Transmitter from china suppliers

Brand Name : Rosemount

Model Number : 5700

Certification : CE

Place of Origin : china

MOQ : 1

Price : USD$2500

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 500pc

Delivery Time : in stock

Packaging Details : carton

brand : Rosemount

model : 5700

Warranty : 1 year

Local display : Graphical backlit display

Contact Now

Specifications

Local display

Graphical backlit display
Four-button optical controls
Flowmeter-status LED
Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.

Power

Self-switching AC/DC input, automatically recognizes supply voltage
85 to 2405 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
18 to 100 VDC, 6 watts typical, 11 watts maximum
Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2

Universal Service Port: Universal Service Port design allows for connection and data transfer using standard, readily available equipment.

Configurable I/O version

Up to 5 licensable channels with the following possible configurations:

1 to 3 4-20 mA outputs
1 to 3 Pulse outputs
1 to 3 Discrete outputs
1 to 2 Discrete inputs
1 mA input
1 Modbus/RS-485

Channel A: mA/HART
Channel B: mA/FO/DO
Channel C: mA/FO/DO/DI
Channel D: mA-input/FO/DO/DI
Channel E: Modbus RS-485

Communication Protocol

WirelessHART

WirelessHART available with the 775 Smart Wireless THUM adapter.

FOUNDATION Fieldbus version

FOUNDATION Fieldbus channel
mA output
Pulse output

PROFIBUS-PA version

PROFIBUS-PA channel
mA IS output
Pulse IS output

Wi-Fi Display Option:: Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes. Available for the 5700 Config I/O version only.

Intrinsically Safe version

Up to 4 licensable IS channels with the following configurations:

Channel A: mA/HART
Channel B: mA
Channel C: mA/FO
Channel D: FO
Channel E: Not Used

SIL Certified Device Available – Uses an internal readback loop to verify the milliamp output

Ethernet version

Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device
Additional channel included configurable to mA output, pulse output, discrete output, or discrete input
Pre-installed M12 quick connections available as an option

Mounting options

Field-mount aluminum and stainless steel housing options
Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only)
Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions)

Application types

Smart Meter Verification Professional
Discrete batch control
Petroleum measurement and API correction option
Concentration measurement
Advanced Phase Measurement for two phase flow remediation
Piecewise Linearization for Gas Applications

Certificates/Approvals

Hazardous approvals

Class I, Div. 1
Class I, Div. 2
Zone 1
Zone 2

SIL/SIS Certification

5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section.

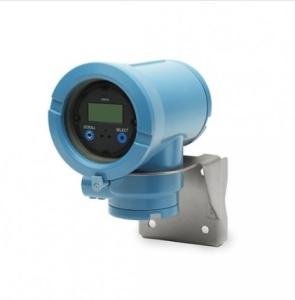

Rosemount Micro Motion 5700 Field-Mount Transmitter Images
